WMP-E Series Bathtub Circulation Pump 220-240V/50Hz for Spa & Whirlpool Systems

WMP-E Series Bathtub Pump for Spa & Whirlpool Systems

The WMP-E Series Bathtub Pump is a circulation pump designed for whirlpool bathtubs, massage spa systems, hydrotherapy baths, and other water circulation applications. Operating at 220-240V / 50Hz, this series is suitable for European, Asian, and other 50Hz power supply markets. Featuring a high-efficiency motor, silent operation, and automatic drainage function, this pump delivers stable water flow while maintaining quiet performance for residential and commercial spa installations.

Features

• High-performance bathtub water circulation

• Automatic drainage design

• Silent operation for reduced noise

• Anodized aluminum motor housing for oxidation resistance

• Built-in overload protection

• Optional pneumatic air switch

• Class B insulation

• IEC63 motor standard

• IPX5 waterproof protection

• Concise and compact design

• Durable construction for long service life

• CE, SAA, CB, TUV certified

Performance Curves

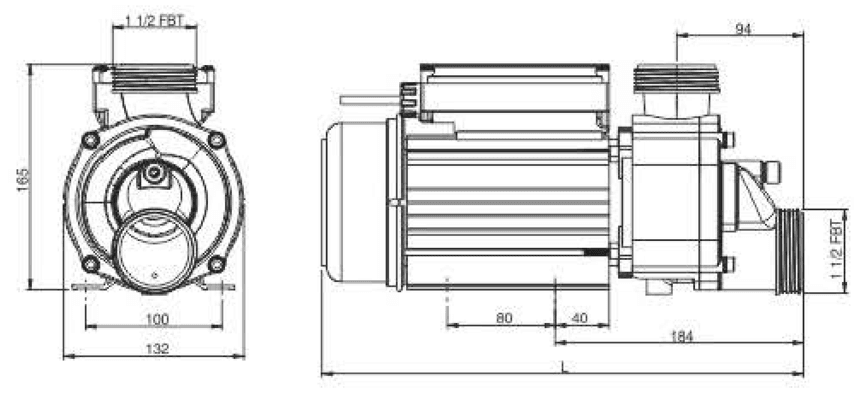

Size of Installation

Model	WMPE500 WMPE700	WMPE800 WMPE900
L(mm)	335	345

Technical Parameter List

Model	Power	V/Hz	Qmax (L/min)	Hmax (Meter)	Fitting Size (mm)	G.W (kg)	Packing Size (mm)	Qty/20′
WMPE500	550W / 0.75HP	220-240V / 50Hz	300	8	48.5/50	5.4	350×160×190	2725
WMPE700	750W / 1.0HP		350	9.5		6.4
WMPE800	800W / 1.1HP		380	10		6.8	360×160×190	2649
WMPE900	900W / 1.2HP		400	10.5		7.2

Available Models

• WMPE500 (550W / 0.75HP)

• WMPE700 (750W / 1.0HP)

• WMPE800 (800W / 1.1HP)

• WMPE900 (900W / 1.2HP)

Different power options are available to meet various whirlpool bathtub and spa system requirements. With its compact design and quiet operation, the WMP-E series is particularly suitable for residential spa applications where space and noise are key considerations.

Applications

The WMP-E Series Bathtub Pump is suitable for:

• Whirlpool bathtubs

• Massage bathtubs

• Spa pools

• Hydrotherapy systems

• Home spa equipment

• Residential spa facilities

• Water circulation systems

Designed for dependable performance with a focus on quiet operation, the WMP-E series offers efficient water circulation, smooth operation, and long-lasting durability. It is an excellent choice for OEM manufacturers, spa equipment suppliers, and bathroom component distributors seeking reliable bathtub circulation pump solutions for 50Hz power supply applications.
