WCP-E Series Bathtub Pump 220-240V (500W-2000W)

WCP-E Series Bathtub Pump for Spa & Whirlpool Systems

The WCP-E Series Bathtub Pump is a high-performance water circulation pump designed for whirlpool bathtubs, massage spa systems, hydrotherapy baths, and other water circulation applications. With a high-efficiency motor and large flow capacity, this series delivers the strong, stable water movement required by residential and commercial spa installations.

Operating at 220-240V / 50Hz and available in seven models from 500W to 2000W, the WCP-E Series Bathtub Pump combines low vibration, silent operation, and built-in overload protection. The optional pneumatic air switch can be installed on the end of the terminal box for convenient control, and the special shockproof basement further reduces noise and vibration.

Key Features

• High-performance bathtub water circulation
• Low vibration and low operating noise
• Silent operation
• Anodized aluminum motor housing
• Built-in overload protection
• Optional pneumatic air switch installed on the end of the terminal box
• Class B insulation
• IPX5 waterproof protection
• Shockproof basement of special design (optional)
• High-efficiency motor with stable flow output
• Anodized aluminum motor housing for oxidation resistance
• IPX5 waterproof protection for humid bathroom environments
• Maximum liquid temperature ≤50°C
• IEC71 motor standard
• Durable construction for long service life
• CE, SAA, CB, TUV certified

Why Choose the WCP-E Series

The WCP-E Series Bathtub Pump is designed for users who need high flow and dependable service life. Every model features an anodized aluminum motor body, Class B insulation, an IEC71 motor standard, and IPX5 waterproof protection, so the pump performs reliably in humid bathrooms and spa rooms. A maximum liquid temperature of 50°C makes it suitable for typical heated spa and whirlpool systems.

• Designed and tested for continuous duty in European, Asian, and other 50Hz markets
• IEC71 motor standard for consistent performance
• Stable water flow with low vibration and quiet operation
• Automatic drainage keeps the spa system clean and ready for the next use
• Optional pneumatic air switch for convenient on/off control
• CE, SAA, CB, TUV certified for export markets

Quality & Certification

The WCP-E series is manufactured under an ISO9001 quality management system, with every pump tested before shipment. All models carry CE, SAA, CB, and TUV certification, so the WCP-E Series Bathtub Pump meets the requirements of international export markets and can be installed with confidence in residential and commercial spa projects.

Performance Curves

The performance curve of the WCP-E Series Bathtub Pump shows the relationship between flow rate and head at 2860 r/min, helping you select the right model for your spa, whirlpool bathtub, or hydrotherapy system.

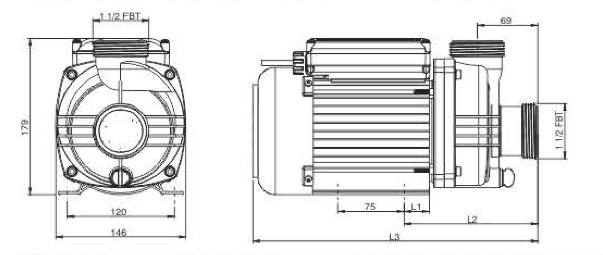

Size of Installation

Model	L1 (mm)	L2 (mm)	L3 (mm)
WCP500E / WCP600E / WCP750E / WCP900E / WCP1100E	28.5	151.5	322
WCP1500E	37.5	160.5	340
WCP2000E	50	173	365

Technical Parameter List

Model	Power	V/Hz	Qmax (L/min)	Hmax (Meter)	Fitting Size (mm)	G.W (kg)	Packing Size (mm)	Qty/20′
WCP500E	500W/0.7HP	220-240V / 50Hz	290	8.0	48.5/50	5.8	330×160×205	2679
WCP600E	600W/0.8HP	220-240V / 50Hz	320	9.8	48.5/50	6.0	330×160×205	2679
WCP750E	750W/1.0HP	220-240V / 50Hz	350	10.8	48.5/50	6.5	330×160×205	2679
WCP900E	900W/1.2HP	220-240V / 50Hz	400	11.6	48.5/50	6.8	330×160×205	2679
WCP1100E	1100W/1.5HP	220-240V / 50Hz	460	12.8	48.5/50	7.9	330×160×205	2679
WCP1500E	1500W/2.0HP	220-240V / 50Hz	470	14.5	48.5/50	8.9	340×160×205	2600
WCP2000E	2000W/2.7HP	220-240V / 50Hz	520	15.0	48.5/50	9.8	370×160×205	2389

Available Models

The WCP-E Series Bathtub Pump is available in the following models:

• WCP500E (500W/0.7HP)
• WCP600E (600W/0.8HP)
• WCP750E (750W/1.0HP)
• WCP900E (900W/1.2HP)
• WCP1100E (1100W/1.5HP)
• WCP1500E (1500W/2.0HP)
• WCP2000E (2000W/2.7HP)

Every model of the WCP-E Series Bathtub Pump comes with a standard 48.5/50 mm fitting size, and different power options are available to match various whirlpool bathtub and spa system requirements.

Customization & OEM Service

All models in the WCP-E series can be customized for OEM and ODM projects. Options include different power ratings, 50Hz or 60Hz voltage configurations, pneumatic air switches, special shockproof basements, and custom fittings. We support private-label packaging and export documentation, making the WCP-E Series Bathtub Pump a flexible choice for spa equipment brands, bathroom component distributors, and project buyers.

Packaging & Shipping

Each WCP-E Series Bathtub Pump is individually packed in a sturdy carton measuring 330×160×205 mm. Depending on the model, one 20-foot container can hold 2679 units, which keeps freight costs predictable for regular export shipments. All pumps are inspected before packing to ensure reliable arrival at your warehouse or job site.

Applications

The WCP-E Series Bathtub Pump is suitable for:

• Whirlpool bathtubs
• Massage bathtubs
• Spa pools
• Hydrotherapy systems
• Home spa equipment
• Commercial spa facilities
• Water circulation and drainage systems

Designed for dependable performance with reliable high-flow performance, the WCP-E Series Bathtub Pump offers efficient water circulation, smooth operation, and long-lasting durability. It delivers a maximum flow of 290 to 520 L/min across 500W to 2000W, making it an excellent choice for OEM manufacturers, spa equipment suppliers, and bathroom component distributors seeking reliable bathtub pump solutions.
