JR Series Hydromassage Bathtub Heater (I Type) 115V/230V (1000W-3000W)

JR Series Hydromassage Bathtub Heater (I Type) for Spa & Whirlpool Systems

The JR Series Hydromassage Bathtub Heater (I Type) is designed as an inline electric heating element for whirlpool bathtubs, spa pools, hot tubs, and hydromassage systems. It keeps the bathing water at a comfortable temperature so users can enjoy longer massage sessions without adding fresh hot water. This I Type variant is engineered for flexible installation in standard bathtub plumbing layouts.

Operating on either 115V or 230V, the JR series with the I Type configuration is available in four power ratings—1000W, 1500W, 2000W, and 3000W—to match standard single tubs, single big tubs, standard double tubs, and spa-sized pools respectively. Current draw ranges from 4.3 A to 17.5 A depending on voltage and power, while the compact 255 mm body length keeps installation flexible in tight equipment compartments.

Key Features

• Inline electric heating element for whirlpool, spa, and massage bathtubs
• Available in the I Type housing configuration
• Four power ratings: 1000W, 1500W, 2000W, and 3000W
• Dual-voltage compatibility: 115V or 230V
• Compact 255 mm body length for tight equipment compartments
• Stainless-steel heating tube for corrosion resistance in treated spa water
• Suitable for standard single, big single, double, and spa-sized bathtubs
• CE, SAA, CB, TUV certified for international export markets

Why Choose the JR Series (I Type)

The JR Series Hydromassage Bathtub Heater (I Type) is engineered for reliable, long-life operation in residential and commercial spa environments. Its stainless-steel heating tube and corrosion-resistant housing withstand continuous contact with treated spa water, while the thermal cut-off and flow switch (typical for this class of inline heater) protect the element when flow is interrupted. The I Type layout simplifies routing in existing bathtub plumbing without major modification.

• Designed for continuous duty in residential and commercial spa environments
• Reliable inline heating extends comfortable bathing time without refilling
• The I Type layout makes retrofit and OEM integration straightforward
• Compact size fits standard bathtub equipment bays
• Compatible with air jet, water jet, and combined hydromassage systems
• CE, SAA, CB, TUV certified for export to international markets

Quality & Certification

The JR series is manufactured under an ISO9001 quality management system. Each heater is inspected and tested before shipment to ensure stable thermal performance and reliable insulation. All models carry CE, SAA, CB, and TUV certification, so the JR Series Hydromassage Bathtub Heater (I Type) meets the requirements of international export markets and can be installed with confidence in residential, hotel, and commercial spa projects.

Performance Curves

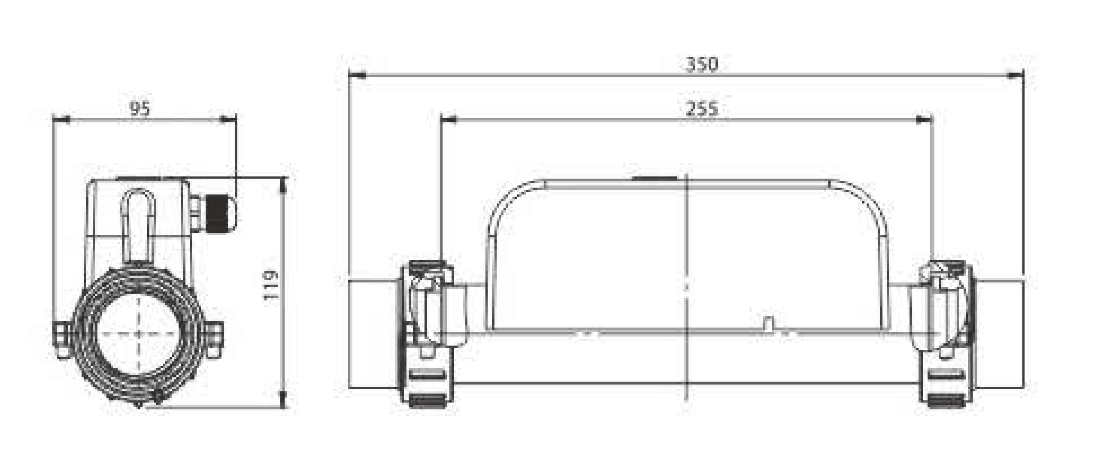

Size of Installation

The JR Series Hydromassage Bathtub Heater (I Type) features a compact 255 mm body length and the I Type housing layout. Installation drawings and dimensional diagrams are available on request. Contact our team for detailed CAD files and OEM-specific installation guidance.

Technical Parameter List

Model	Power	Current 115V (A)	Current 230V (A)	L (mm)	Water Capacity (Gallon)	Water Capacity (Litre)	Nozzle Qty (PCS)	Remark
JR-1000I	1000W	8.8	4.3	255	60	227	4-6	Standard single tub
JR-1500I	1500W	13.5	6.7	255	100	378	4-8	Single big tub
JR-2000I	2000W	17.5	8.8	255	200	756	6-12	Standard double tub
JR-3000I	3000W	/	13.5	255	340	1285	8-18	SPA

Available Models

The JR Series Hydromassage Bathtub Heater (I Type) is available in the following models:

• JR-1000I (1000W)
• JR-1500I (1500W)
• JR-2000I (2000W)
• JR-3000I (3000W)

All four power ratings of the JR Series Hydromassage Bathtub Heater (I Type) share the same compact 255 mm body length, so they can be interchanged within the same equipment bay. The T, I, and L Type housing variants give OEMs and installers the flexibility to match different plumbing layouts without custom fabrication.

Customization & OEM Service

All models in the JR series can be customized for OEM and ODM projects. Options include different power ratings, voltage configurations, cable lengths, connector types, and private-label packaging. We support export documentation and project-specific labelling, making the JR Series Hydromassage Bathtub Heater (I Type) a flexible choice for spa equipment brands, bathtub manufacturers, and wholesale distributors.

For OEM projects the JR Series Hydromassage Bathtub Heater (I Type) can be supplied with custom cable lengths, country-specific plugs, and branded packaging to help you launch a market-ready product line.

Packaging & Shipping

Each JR Series Hydromassage Bathtub Heater (I Type) is individually packed in a sturdy export carton with foam protection to prevent transit damage. Carton size and 20-foot container quantity depend on the model and order volume—contact our team for the latest packing details and freight estimates for your destination port.

Applications

The JR Series Hydromassage Bathtub Heater (I Type) is suitable for:

• Whirlpool bathtub heating systems
• Spa pool water temperature maintenance
• Hot tub circulation heating
• Massage bathtub heating
• Hydromassage therapy systems
• Hotel and resort bathtub installations
• Residential spa retrofit projects
• Wellness center and spa equipment OEM

Designed for dependable performance with a focus on safety, thermal stability, and easy retrofit into existing plumbing, the JR Series Hydromassage Bathtub Heater (I Type) is an excellent choice for OEM manufacturers, spa equipment suppliers, bathtub manufacturers, and distributors seeking a reliable inline heating solution for whirlpool and spa tub systems.
