HTC Series Bathtub Pump 220-240V (600W-1500W)

HTC Series Bathtub Pump for Spa & Whirlpool Systems

The HTC Series Bathtub Pump is a high-flow water circulation pump designed for whirlpool bathtubs, massage spa systems, hydrotherapy baths, and other water circulation applications. With a high-efficiency motor and a maximum flow of 540 L/min, it provides the strong water movement that larger bathtubs and spa systems require.

Operating at 220-240V / 50Hz and available in five models from 600W to 1500W, the HTC Series Bathtub Pump combines silent operation, low vibration, and built-in overload protection, delivering dependable performance for European, Asian, and other 50Hz power supply markets.

Key Features

• High-performance bathtub water circulation
• Silent operation for reduced noise
• Low vibration and low operating noise
• Anodized aluminum motor housing
• Built-in overload protection
• Class B insulation
• IPX5 waterproof protection
• High-efficiency motor with stable flow output
• Anodized aluminum motor housing for oxidation resistance
• IPX5 waterproof protection for humid bathroom environments
• IEC71 motor standard
• Durable construction for long service life
• CE, SAA, CB, TUV certified

Why Choose the HTC Series

The HTC Series Bathtub Pump is engineered for applications that demand both high flow and quiet running. An anodized aluminum motor housing, Class B insulation, an IEC71 motor standard, and IPX5 waterproof protection ensure reliable operation in humid bathroom and spa environments for years of service.

• Designed and tested for continuous duty in European, Asian, and other 50Hz markets
• IEC71 motor standard for consistent performance
• Stable water flow with low vibration and quiet operation
• Automatic drainage keeps the spa system clean and ready for the next use
• Optional pneumatic air switch for convenient on/off control
• CE, SAA, CB, TUV certified for export markets

Quality & Certification

The HTC series is manufactured under an ISO9001 quality management system, with every pump tested before shipment. All models carry CE, SAA, CB, and TUV certification, so the HTC Series Bathtub Pump meets the requirements of international export markets and can be installed with confidence in residential and commercial spa projects.

Performance Curves

The performance curve of the HTC Series Bathtub Pump shows the relationship between flow rate and head at 2860 r/min, helping you select the right model for your spa, whirlpool bathtub, or hydrotherapy system.

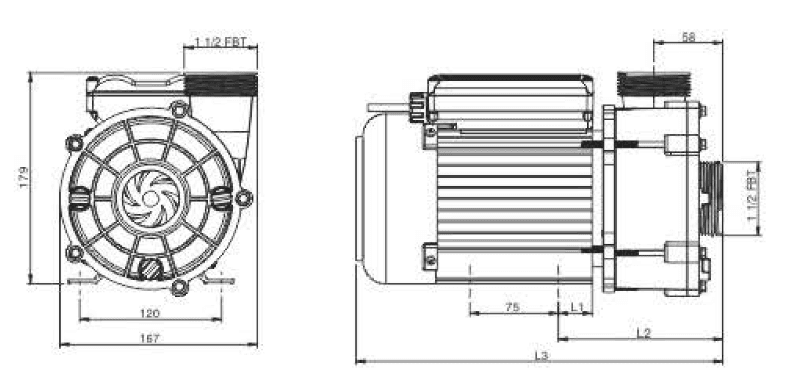

Size of Installation

Model	L1 (mm)	L2 (mm)	L3 (mm)
HTC600E / HTC750E / HTC900E / HTC1100E	28.5	139	314
HTC1500E	37.5	148	332

Technical Parameter List

Model	Power	V/Hz	Qmax (L/min)	Hmax (Meter)	Fitting Size (mm)	G.W (kg)	Packing Size (mm)	Qty/20′
HTC600E	600W/0.8HP	220-240V / 50Hz	370	10.0	48.5/50	6.4	360×160×205	2455
HTC750E	750W/1.0HP	220-240V / 50Hz	410	10.5	48.5/50	6.8	360×160×205	2455
HTC900E	900W/1.2HP	220-240V / 50Hz	450	11.5	48.5/50	7.1	360×160×205	2455
HTC1100E	1100W/1.5HP	220-240V / 50Hz	510	13.0	48.5/50	8.0	360×160×205	2455
HTC1500E	1500W/2.0HP	220-240V / 50Hz	540	15.0	48.5/50	9.2	360×160×205	2455

Available Models

The HTC Series Bathtub Pump is available in the following models:

• HTC600E (600W/0.8HP)
• HTC750E (750W/1.0HP)
• HTC900E (900W/1.2HP)
• HTC1100E (1100W/1.5HP)
• HTC1500E (1500W/2.0HP)

Every model of the HTC Series Bathtub Pump comes with a standard 48.5/50 mm fitting size, and different power options are available to match various whirlpool bathtub and spa system requirements.

Customization & OEM Service

All models in the HTC series can be customized for OEM and ODM projects. Options include different power ratings, 50Hz or 60Hz voltage configurations, pneumatic air switches, special shockproof basements, and custom fittings. We support private-label packaging and export documentation, making the HTC Series Bathtub Pump a flexible choice for spa equipment brands, bathroom component distributors, and project buyers.

Packaging & Shipping

Each HTC Series Bathtub Pump is individually packed in a sturdy carton measuring 360×160×205 mm. Depending on the model, one 20-foot container can hold 2455 units, which keeps freight costs predictable for regular export shipments. All pumps are inspected before packing to ensure reliable arrival at your warehouse or job site.

Applications

The HTC Series Bathtub Pump is suitable for:

• Whirlpool bathtubs
• Massage bathtubs
• Spa pools
• Hydrotherapy systems
• Home spa equipment
• Commercial spa facilities
• Water circulation and drainage systems

Designed for dependable performance with reliable high-flow performance, the HTC Series Bathtub Pump offers efficient water circulation, smooth operation, and long-lasting durability. It delivers a maximum flow of 370 to 540 L/min across 600W to 1500W, making it an excellent choice for OEM manufacturers, spa equipment suppliers, and bathroom component distributors seeking reliable bathtub pump solutions.
