HTA Series Bathtub Pump 220-240V (600W-1500W)

HTA Series Bathtub Pump for Spa & Whirlpool Systems

The HTA Series Bathtub Pump is a silent, high-flow water circulation pump designed for whirlpool bathtubs, massage spa systems, hydrotherapy baths, and other water circulation applications. Its pump body connects directly to metal for noise-free operation, making it a preferred choice for quiet spa environments.

Operating at 220-240V / 50Hz and available in five models from 600W to 1500W, the HTA Series Bathtub Pump delivers a maximum flow of up to 500 L/min with low vibration, stable performance, and an optional shockproof basement for even quieter operation.

Key Features

• Silent operation for reduced noise
• High-performance bathtub water circulation
• Low vibration and low operating noise
• Anodized aluminum motor housing
• Built-in overload protection
• Optional pneumatic air switch
• Class B insulation
• IPX5 waterproof protection
• Pump body connects directly to metal for noise-free operation
• Shockproof basement of special design (optional)
• High-efficiency motor with stable flow output
• Anodized aluminum motor housing for oxidation resistance
• IPX5 waterproof protection for humid bathroom environments
• IEC71 motor standard
• Durable construction for long service life
• CE, SAA, CB, TUV certified

Why Choose the HTA Series

The HTA Series Bathtub Pump stands out with its metal-direct connection design, which keeps the pump body free of extra noise during operation. Combined with an anodized aluminum motor housing, Class B insulation, an IEC71 motor standard, and IPX5 waterproof protection, it is built for years of reliable service in homes, hotels, and commercial spa facilities.

• Designed and tested for continuous duty in European, Asian, and other 50Hz markets
• IEC71 motor standard for consistent performance
• Stable water flow with low vibration and quiet operation
• Automatic drainage keeps the spa system clean and ready for the next use
• Optional pneumatic air switch for convenient on/off control
• CE, SAA, CB, TUV certified for export markets

Quality & Certification

The HTA series is manufactured under an ISO9001 quality management system, with every pump tested before shipment. All models carry CE, SAA, CB, and TUV certification, so the HTA Series Bathtub Pump meets the requirements of international export markets and can be installed with confidence in residential and commercial spa projects.

Performance Curves

The performance curve of the HTA Series Bathtub Pump shows the relationship between flow rate and head at 2860 r/min, helping you select the right model for your spa, whirlpool bathtub, or hydrotherapy system.

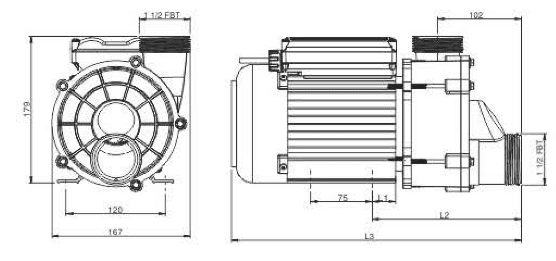

Size of Installation

Model	L1 (mm)	L2 (mm)	L3 (mm)
HTA600E / HTA750E / HTA900E / HTA1100E	28.5	182	358
HTA1500E	37.5	191	376

Technical Parameter List

Model	Power	V/Hz	Qmax (L/min)	Hmax (Meter)	Fitting Size (mm)	G.W (kg)	Packing Size (mm)	Qty/20′
HTA600E	600W/0.8HP	220-240V / 50Hz	340	10.0	48.5/50	6.4	360×180×205	2183
HTA750E	750W/1.0HP	220-240V / 50Hz	350	10.5	48.5/50	6.8	360×180×205	2183
HTA900E	900W/1.2HP	220-240V / 50Hz	400	11.0	48.5/50	7.1	360×180×205	2183
HTA1100E	1100W/1.5HP	220-240V / 50Hz	440	12.5	48.5/50	8.0	360×180×205	2183
HTA1500E	1500W/2.0HP	220-240V / 50Hz	500	14.5	48.5/50	9.2	380×180×205	2068

Available Models

The HTA Series Bathtub Pump is available in the following models:

• HTA600E (600W/0.8HP)
• HTA750E (750W/1.0HP)
• HTA900E (900W/1.2HP)
• HTA1100E (1100W/1.5HP)
• HTA1500E (1500W/2.0HP)

Every model of the HTA Series Bathtub Pump comes with a standard 48.5/50 mm fitting size, and different power options are available to match various whirlpool bathtub and spa system requirements.

Customization & OEM Service

All models in the HTA series can be customized for OEM and ODM projects. Options include different power ratings, 50Hz or 60Hz voltage configurations, pneumatic air switches, special shockproof basements, and custom fittings. We support private-label packaging and export documentation, making the HTA Series Bathtub Pump a flexible choice for spa equipment brands, bathroom component distributors, and project buyers.

Packaging & Shipping

Each HTA Series Bathtub Pump is individually packed in a sturdy carton measuring 360×180×205 mm. Depending on the model, one 20-foot container can hold 2183 units, which keeps freight costs predictable for regular export shipments. All pumps are inspected before packing to ensure reliable arrival at your warehouse or job site.

Applications

The HTA Series Bathtub Pump is suitable for:

• Whirlpool bathtubs
• Massage bathtubs
• Spa pools
• Hydrotherapy systems
• Home spa equipment
• Commercial spa facilities
• Water circulation and drainage systems

Designed for dependable performance with a focus on quiet, noise-free operation, the HTA Series Bathtub Pump offers efficient water circulation, smooth operation, and long-lasting durability. It delivers a maximum flow of 340 to 500 L/min across 600W to 1500W, making it an excellent choice for OEM manufacturers, spa equipment suppliers, and bathroom component distributors seeking reliable bathtub pump solutions.
