HSP-E Series SPA Pump 220-240V (1500W-1800W)

HSP-E Series SPA Pump for Spa & Swimming Pool Systems

The HSP-E Series SPA Pump is a high-flow circulation pump designed for spa pools, whirlpool bathtubs, massage systems, hydrotherapy baths, and other water circulation applications. It combines a big flow design with a high-quality mechanical seal that resists swimming pool chemicals, delivering stable water movement for residential and commercial spa installations.

Operating at 220-240V / 50Hz and available in two models from 1500W to 1800W, the HSP-E Series SPA Pump delivers a maximum flow of up to 720 L/min with heads up to 15 meters. Its compact IEC71 motor frame makes it easier to install in confined spa rooms while maintaining quiet, low-vibration operation.

Key Features

• Silent operation for reduced noise
• Class F insulation
• Low vibration and low operating noise
• Built-in overload protection
• Big flow design for powerful spa circulation
• High-quality mechanical seal resistant to swimming pool chemicals
• IPX5 waterproof protection
• High-efficiency motor with stable flow output
• Durable construction for long service life
• IEC71 motor standard
• CE, SAA, CB, TUV certified

Why Choose the HSP-E Series

The HSP-E Series SPA Pump is built around an IEC71 motor frame with Class F insulation and IPX5 waterproof protection, making it suitable for humid spa environments. The anodized aluminum motor body resists oxidation, and the chemical-resistant mechanical seal protects the pump from spa water treatment chemicals for dependable long-term service.

• Designed and tested for continuous duty in European, Asian, and other 50Hz markets
• IEC71 motor standard for consistent performance
• Stable water flow with low vibration and quiet operation
• High-quality mechanical seal resists pool and spa chemicals
• Built-in overload protection for safe long-term operation
• CE, SAA, CB, TUV certified for export markets

Quality & Certification

The HSP-E series is manufactured under an ISO9001 quality management system, with every pump tested before shipment. All models carry CE, SAA, CB, and TUV certification, so the HSP-E Series SPA Pump meets the requirements of international export markets and can be installed with confidence in residential and commercial projects.

Performance Curves

The performance curve of the HSP-E Series SPA Pump shows the relationship between flow rate and head at 2860 r/min, helping you select the right model for your spa or swimming pool system.

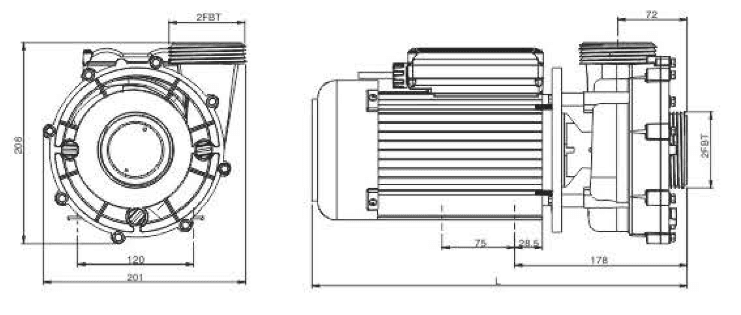

Size of Installation

Model	L (mm)
HSP1500E	387
HSP1800E	417

Technical Parameter List

Model	Power	V/Hz	Qmax (L/min)	Hmax (Meter)	Fitting Size (mm)	G.W (kg)	Packing Size (mm)	Qty/20′
HSP1500E	1500W/2.0HP	220-240V / 50Hz	670	13	60.3	11.6	420×215×230	1396
HSP1800E	1800W/2.5HP	220-240V / 50Hz	720	15	60.3	13.5	420×215×230	1396

Available Models

The HSP-E Series SPA Pump is available in the following models:

• HSP1500E (1500W/2.0HP)
• HSP1800E (1800W/2.5HP)

Every model of the HSP-E Series SPA Pump is available with the standard fitting size shown in the table, and different power options are available to match various spa and swimming pool system requirements.

Customization & OEM Service

All models in the HSP-E series can be customized for OEM and ODM projects. Options include different power ratings, 50Hz or 60Hz voltage configurations, single-phase or three-phase motors, special fittings, and private-label packaging. We support export documentation, making the HSP-E Series SPA Pump a flexible choice for spa equipment brands, pool equipment suppliers, and project buyers.

Packaging & Shipping

Each HSP-E Series SPA Pump is individually packed in a sturdy carton measuring 420×215×230 mm. Depending on the model, one 20-foot container can hold 1396 units, which keeps freight costs predictable for regular export shipments. All pumps are inspected before packing to ensure reliable arrival at your warehouse or project site.

Applications

The HSP-E Series SPA Pump is suitable for:

• Spa pools
• Whirlpool bathtubs
• Massage bathtubs
• Hydrotherapy systems
• Hot tubs
• Swimming pool water circulation
• Home spa equipment
• Commercial spa facilities

Designed for dependable performance with reliable high-flow performance, the HSP-E Series SPA Pump delivers a maximum flow of 670 to 720 L/min across 1500W to 1800W, making it an excellent choice for OEM manufacturers, spa equipment suppliers, swimming pool contractors, and distributors seeking reliable pump solutions.
