HPP Series Variable Speed Swimming Pool Pump 220-240V (750W-1500W)

HPP Series Swimming Pool Pump for Spa & Swimming Pool Systems

The HPP Series Swimming Pool Pump is an energy-saving variable speed pool pump designed for swimming pools, above-ground pools, spa pools, and pool filtration systems. By adjusting the motor speed from 600 to 3000 RPM, it matches water flow to the actual needs of the pool, reducing energy consumption and operating noise.

Operating at 220-240V / 50-60Hz and available in three models from 750W to 1500W, the HPP Series Swimming Pool Pump delivers a maximum flow of up to 560 L/min. Three-speed operation and constant pressure discharging are available as options, giving pool owners flexible control over circulation and filtration.

Key Features

• Single or three phase options
• Silent operation for reduced noise
• Concise and compact design
• Class F insulation
• Maximum liquid temperature ≤60°C
• Chemical-resistant construction for swimming pool water
• IPX5 waterproof protection
• Anodized aluminum motor body
• Built-in overload protection
• Huge pro-filter for less cleaning maintenance
• Heightened pump base keeps the pump away from water or moist environments
• Built-in drain device for easy maintenance
• Energy saving and eco-friendly design
• Variable speed from 600 to 3000 RPM
• Three-speed operation optional
• Constant pressure discharging optional
• High-efficiency motor with stable flow output
• Durable construction for long service life
• CE, SAA, CB, TUV certified

Why Choose the HPP Series

The HPP Series Swimming Pool Pump is engineered for energy savings and quiet operation. The variable speed motor lets you run the pump at lower speeds for daily filtration and higher speeds for pool cleaning, while the huge pro-filter reduces maintenance and the chemical-resistant construction stands up to pool water treatment chemicals.

• Designed and tested for continuous duty in European, Asian, and other 50-60Hz markets
• Stable water flow with low vibration and quiet operation
• High-quality mechanical seal resists pool and spa chemicals
• Built-in overload protection for safe long-term operation
• CE, SAA, CB, TUV certified for export markets

Quality & Certification

The HPP series is manufactured under an ISO9001 quality management system, with every pump tested before shipment. All models carry CE, SAA, CB, and TUV certification, so the HPP Series Swimming Pool Pump meets the requirements of international export markets and can be installed with confidence in residential and commercial projects.

Performance Curves

The performance curve of the HPP Series Swimming Pool Pump shows the relationship between flow rate and head at 600-3000 RPM variable, helping you select the right model for your spa or swimming pool system.

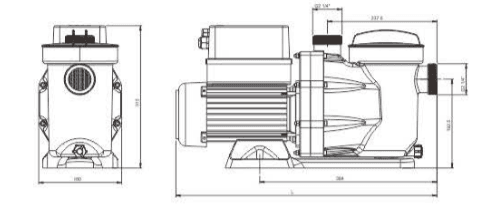

Size of Installation

Model	L (mm)
HPP750	528
HPP1100	546
HPP1500	571

Technical Parameter List

Model	Power	V/Hz	Qmax (L/min)	Hmax (Meter)	Self-priming (m)	Fitting Size (mm)	G.W (kg)	Packing Size (mm)	Qty/20′
HPP750	750W/1.0HP	220-240V / 50-60Hz	350		3.5	40/48.5	12	600×205×360	650
HPP1100	1100W/1.5HP	220-240V / 50-60Hz	450	18	4	40/48.5	14	600×205×360	650
HPP1500	1500W/2.0HP	220-240V / 50-60Hz	560	18	4.5	40/48.5	15.4	600×205×360	650

Available Models

The HPP Series Swimming Pool Pump is available in the following models:

• HPP750 (750W/1.0HP)
• HPP1100 (1100W/1.5HP)
• HPP1500 (1500W/2.0HP)

Every model of the HPP Series Swimming Pool Pump is available with the standard fitting size shown in the table, and different power options are available to match various spa and swimming pool system requirements.

Customization & OEM Service

All models in the HPP series can be customized for OEM and ODM projects. Options include different power ratings, 50Hz or 60Hz voltage configurations, single-phase or three-phase motors, special fittings, and private-label packaging. We support export documentation, making the HPP Series Swimming Pool Pump a flexible choice for spa equipment brands, pool equipment suppliers, and project buyers.

Packaging & Shipping

Each HPP Series Swimming Pool Pump is individually packed in a sturdy carton measuring 600×205×360 mm. Depending on the model, one 20-foot container can hold 650 units, which keeps freight costs predictable for regular export shipments. All pumps are inspected before packing to ensure reliable arrival at your warehouse or project site.

Applications

The HPP Series Swimming Pool Pump is suitable for:

• Swimming pools
• Above-ground pools
• Spa pools
• Pool filtration systems
• Pool water circulation
• Pool cleaning systems
• Residential pools
• Commercial pools

Designed for dependable performance with energy-saving variable speed performance, the HPP Series Swimming Pool Pump delivers a maximum flow of 350 to 560 L/min across 750W to 1500W, making it an excellent choice for OEM manufacturers, spa equipment suppliers, swimming pool contractors, and distributors seeking reliable pump solutions.
