HBPE Series Swimming Pool Pump 220-240V/50Hz (550W-1500W)

HBPE Series Swimming Pool Pump for Spa & Swimming Pool Systems

The HBPE Series Swimming Pool Pump is a reliable pool pump designed for swimming pools, above-ground pools, spa pools, and pool filtration systems. Its inner and outer thread design simplifies connection to standard pool plumbing, while the huge pro-filter reduces cleaning maintenance for low-maintenance pool operation.

Operating at 220-240V / 50Hz and available in four models from 550W to 1500W, the HBPE Series Swimming Pool Pump delivers a maximum flow of up to 390 L/min with heads up to 12.5 meters, making it a dependable choice for European, Asian, and other 50Hz power supply markets.

Key Features

• Single or three phase options
• Silent operation for reduced noise
• Concise and compact design
• Class F insulation
• Maximum liquid temperature ≤60°C
• Chemical-resistant construction for swimming pool water
• IPX5 waterproof protection
• Anodized aluminum motor body
• Built-in overload protection
• Huge pro-filter for less cleaning maintenance
• Heightened pump base keeps the pump away from water or moist environments
• Built-in drain device for easy maintenance
• Inner and outer thread design
• High-efficiency motor with stable flow output
• Durable construction for long service life
• CE, SAA, CB, TUV certified

Why Choose the HBPE Series

The HBPE Series Swimming Pool Pump is built for easy installation and reliable operation. The inner and outer thread design accepts standard 1-1/2″ NPT and G2-1/4″ couplings, while the chemical-resistant construction stands up to pool water treatment chemicals. Class F insulation and IPX5 waterproof protection ensure dependable performance in outdoor pool environments.

• Designed and tested for continuous duty in European, Asian, and other 50Hz markets
• Stable water flow with low vibration and quiet operation
• High-quality mechanical seal resists pool and spa chemicals
• Built-in overload protection for safe long-term operation
• CE, SAA, CB, TUV certified for export markets

Quality & Certification

The HBPE series is manufactured under an ISO9001 quality management system, with every pump tested before shipment. All models carry CE, SAA, CB, and TUV certification, so the HBPE Series Swimming Pool Pump meets the requirements of international export markets and can be installed with confidence in residential and commercial projects.

Performance Curves

The performance curve of the HBPE Series Swimming Pool Pump shows the relationship between flow rate and head at 2860 r/min, helping you select the right model for your spa or swimming pool system.

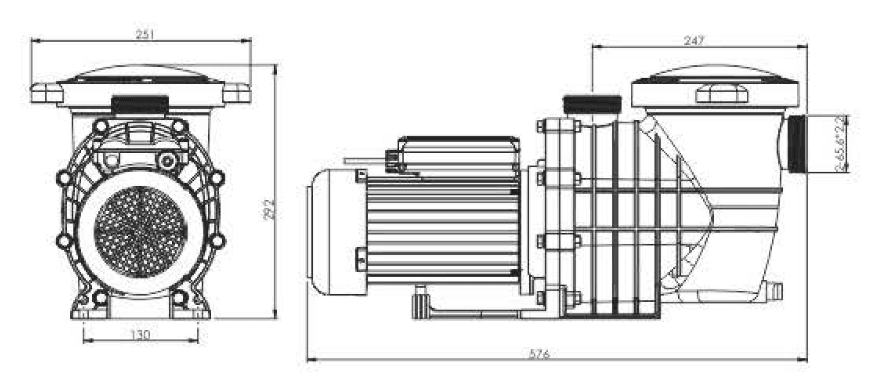

Size of Installation

Model	L (mm)
HBP550E / HBP750E	533
HBP1100E	551
HBP1500E	576

Technical Parameter List

Model	Power	V/Hz	Qmax (L/min)	Hmax (Meter)	Fitting Size (mm)	G.W (kg)	Packing Size (mm)	Qty/20′
HBP550E	550W/0.75HP	220-240V / 50Hz	290	8	1-1/2″NPT / G2-1/4″	8.8	565×255×300	670
HBP750E	750W/1.0HP	220-240V / 50Hz	330	9	1-1/2″NPT / G2-1/4″	10.2	565×255×300	670
HBP1100E	1100W/1.5HP	220-240V / 50Hz	360	11	1-1/2″NPT / G2-1/4″	12	565×255×300	670
HBP1500E	1500W/2.0HP	220-240V / 50Hz	390	12.5	1-1/2″NPT / G2-1/4″	13.5	565×255×300	670

Available Models

The HBPE Series Swimming Pool Pump is available in the following models:

• HBP550E (550W/0.75HP)
• HBP750E (750W/1.0HP)
• HBP1100E (1100W/1.5HP)
• HBP1500E (1500W/2.0HP)

Every model of the HBPE Series Swimming Pool Pump is available with the standard fitting size shown in the table, and different power options are available to match various spa and swimming pool system requirements.

Customization & OEM Service

All models in the HBPE series can be customized for OEM and ODM projects. Options include different power ratings, 50Hz or 60Hz voltage configurations, single-phase or three-phase motors, special fittings, and private-label packaging. We support export documentation, making the HBPE Series Swimming Pool Pump a flexible choice for spa equipment brands, pool equipment suppliers, and project buyers.

Packaging & Shipping

Each HBPE Series Swimming Pool Pump is individually packed in a sturdy carton measuring 565×255×300 mm. Depending on the model, one 20-foot container can hold 670 units, which keeps freight costs predictable for regular export shipments. All pumps are inspected before packing to ensure reliable arrival at your warehouse or project site.

Applications

The HBPE Series Swimming Pool Pump is suitable for:

• Swimming pools
• Above-ground pools
• Spa pools
• Pool filtration systems
• Pool water circulation
• Pool cleaning systems
• Residential pools
• Commercial pools

Designed for dependable performance, the HBPE Series Swimming Pool Pump delivers a maximum flow of 290 to 390 L/min across 550W to 1500W, making it an excellent choice for OEM manufacturers, spa equipment suppliers, swimming pool contractors, and distributors seeking reliable pump solutions.
